4064283 | METPOINT VFS TI 400

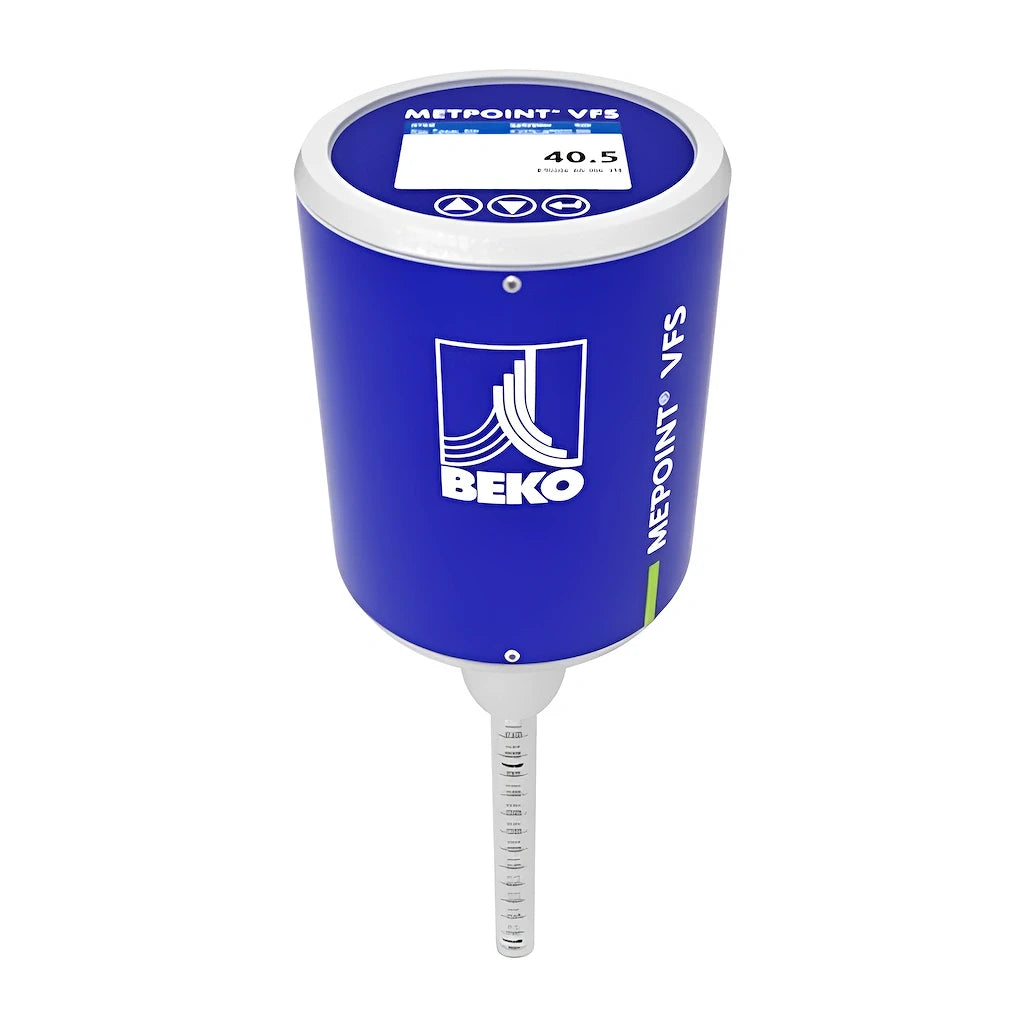

METPOINT VFS Volume Flow Sensor
Penetration sensor with 2-inch TFT-LCD display (resolution: 240 x 320)
Direct flow measurement
High accuracy
No moving parts
Fast response time
5m connection cable included in the scope of delivery
Installation length [mm]: 400
Measuring medium: Compressed air and gaseous nitrogen
Ambient temperature [°C]: -20 to +55
Operating medium temperature [°C]: +5 to +60
Max. operating pressure of the operating medium [bar]: 0 to 16
Voltage supply [VDC]: 24 ± 20 %
Digital output: Modbus-RTU, RS485 interface
Analog output [mA]: 4 to 20, 2-wire (burden < 500 ohms)
Pulse output: Max. 28.8 VDC, 60 mA - potential-free normally open contact (optocoupler), passive - 1 pulse per m³ or per conductor - Max. frequency 50 Hz
Dimensions W x H x D [mm]: 100 x 607 x 80
