4056077 | METPOINT VFS TM 25

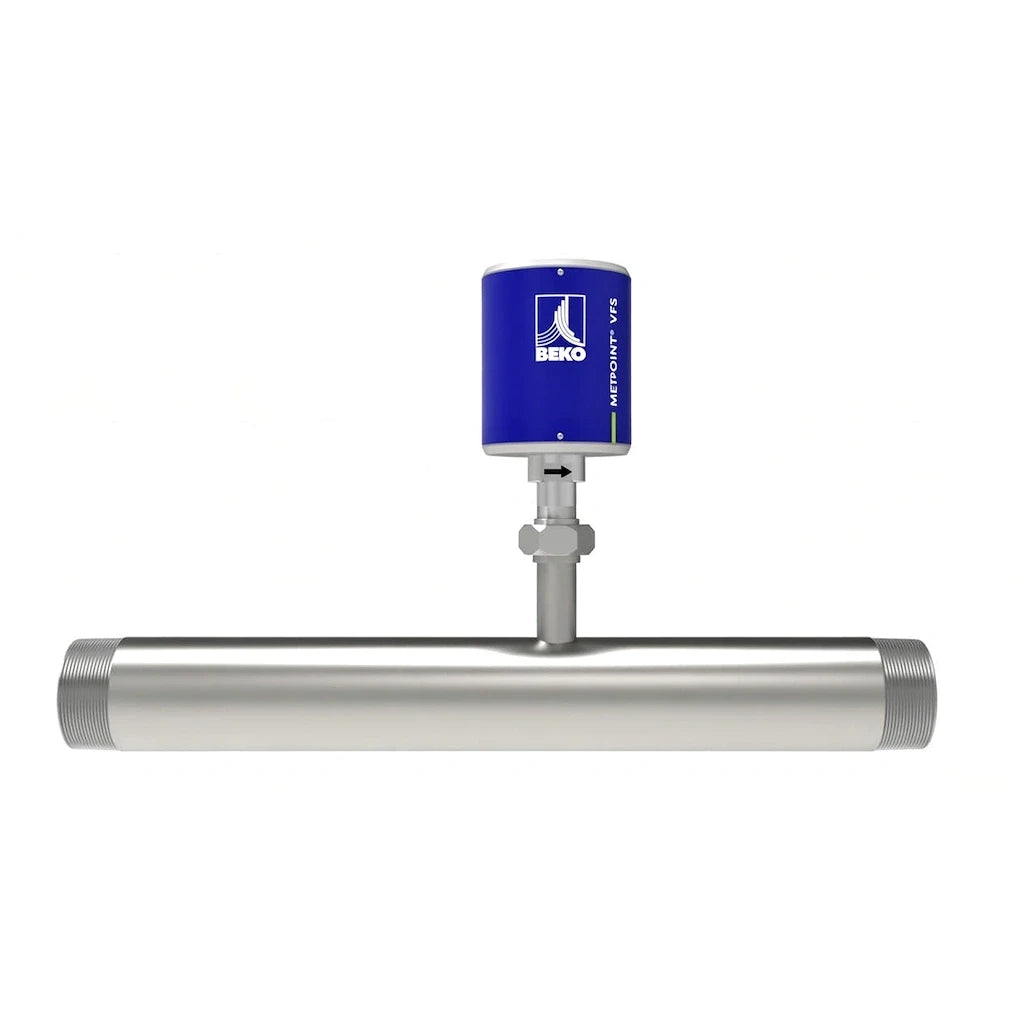

METPOINT VFS Volume Flow Sensor
Sensor with 2-inch TFT-LCD display (resolution: 240 x 320), mounted on a measuring track
Direct flow measurement
High accuracy
No moving parts
Fast response time
5m connection cable included in the scope of delivery
Measuring range [m³/min]: 0.006 to 5.97
Connection: DN25, R 1"
Measuring medium: Compressed air and gaseous nitrogen
Ambient temperature [°C]: +5 to +50
Operating medium temperature [°C]: +5 to +60
Max. operating pressure of the operating medium [bar]: 0 to 16
Voltage supply [VDC]: 24 ± 20 %
Digital output: Modbus-RTU, RS485 interface
Analog output [mA]: 4 to 20, 2-wire (burden < 500 ohms)
Pulse output: Max. 28.8 VDC, 60 mA - potential-free normally open contact (optocoupler), passive - 1 pulse per m³ or per conductor - Max. frequency 50 Hz
