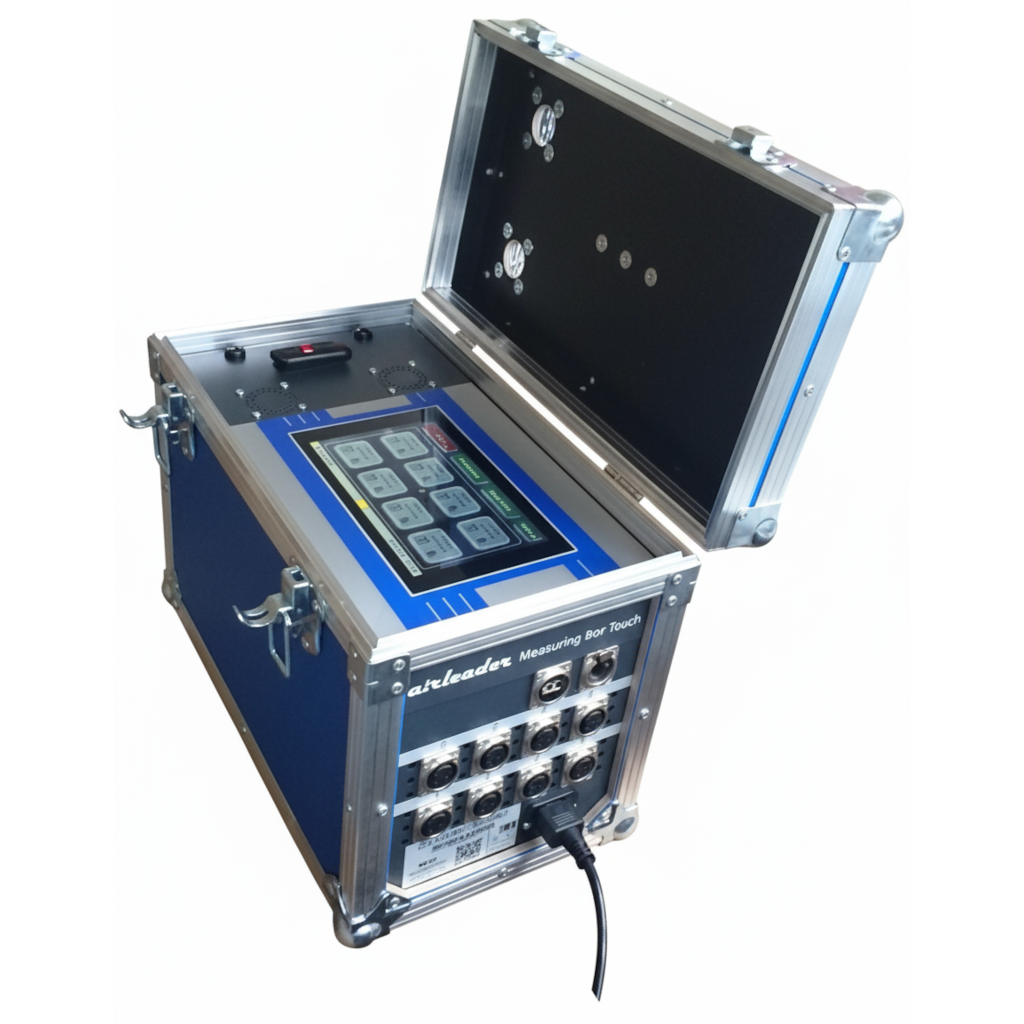

*8000-T | Measuring case for analog measurement incl. evaluation program

Measurement with 7" touchscreen
for the following sensors:
- Ampere clamps for compressor measurement
- kW measurement (via 3-phase measuring device)
- Flow sensors for measuring compressed air consumption
- Pressure dew point sensors for compressed air humidity measurement
- Room temperature sensors for temperature measurements
- Pipe temperature sensors
Integrated data logger
- Recording accurate to the second
- 1000 days of long-term logging
- 4-button operation
- Display of analog values ​​via display
- USB + Ethernet port RJ45
Equipment:
- Coated wooden case with surrounding aluminum edges and protective corners
- 8 analog inputs for sensors (4-20mA) Connection via 5-pin XLR sockets
- 24 V DC power supply for sensors, current 300 mA/channel
- Supply voltage 100-230V AC
- Ventilation via 2 axial fans
- Lockable lid
- Pressure transmitter with connecting cable

Evaluation and simulation program with compressor design diagram
for WINDOWS (Web-based)
- 16 compressor channels
- 16 sensor channels
- 4 decentralized measuring points (with 4 measuring cases)
The compressed air consumption is calculated from the load times of the compressors in conjunction with the pressure signal from the pressure transmitter.
Dimensions: 370 x 290 x 210 mm L x H x W
